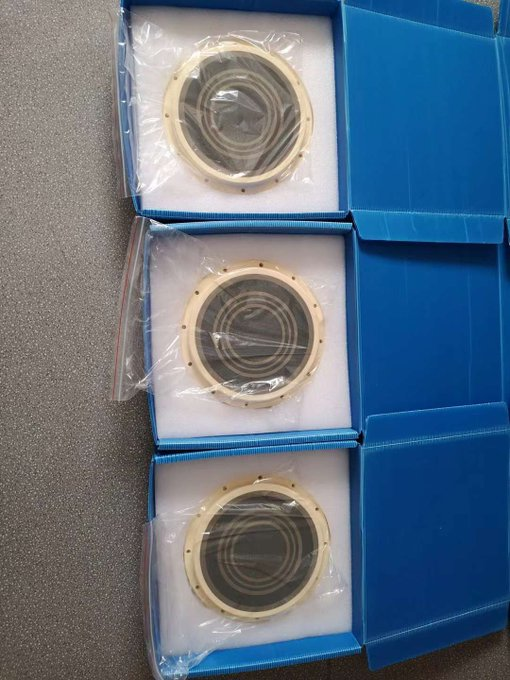

Heaters Refurbishing by SEMIXICON
No. | Description | Process | Model | OEM Code |
---|---|---|---|---|
1 | 300mm 2-GAP Pedestal_R | PVD | INOVA | 02-300478-00-R |
2 | Assy Heater Block(101) | PVD | ENDURA | 0020-20125C |
3 | "Tin Heater Ass'y 6" | 0010-21530 | ||
4 | HTHU Heater Block 수리 | PVD | ENDURA | 0010-76154 |
5 | 8" A101 Heater (Repair) | PVD | ENDURA | 0010-21246 |
6 | 6" A101 Heater | PVD | ENDURA | 0010-21530 |
7 | 8" STD Heater Repair | (비어 있음) | ||
8 | Ass'y Heater Block(STD) 재생 | 0020-20125 | ||
9 | ESC. Pedestal, DT ESC MT, ENDURA 2, 300mm | PVD | 0010-49546 REV.004 | |
10 | Heater Assy 8" B101 | PVD | ENDURA | 0010-13626 |
Thursday, May 13, 2021
ASML 300 MM TWINSCAN SCANNER WAFER PIN CHUCK TABLE 4022 481 41253
ASML 300 MM TWINSCAN SCANNER WAFER PIN CHUCK TABLE 4022 481 41253
https://www.ebay.com/itm/283666753479
Tuesday, May 11, 2021

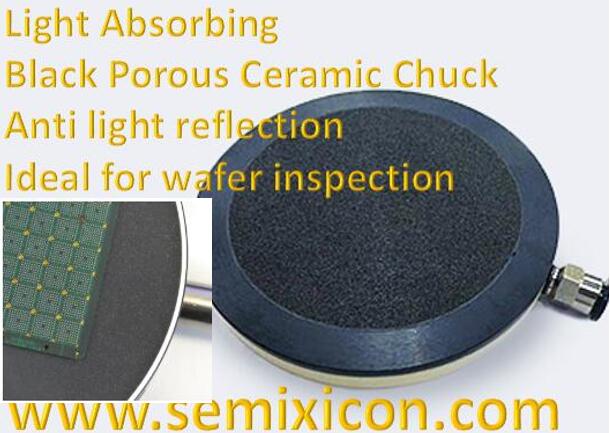

All Ceramic Vacuum Chuck =Solid Zirconia Ceramic Frame+Porous Ceramic Insert =Perfect Performance
SEMIXICON All Ceramic Vacuum Chuck =
Solid Zirconia Ceramic Frame+Porous Ceramic Insert =
Perfect Performance
Suitable for high precision + harsh environment
Sunday, May 9, 2021
Thursday, May 6, 2021
Second Source AMAT Ceramic Components from SEMIXICON
Second Source AMAT Ceramic Components from SEMIXICON
OEM P/N DESCRIPTION MATERIAL
0020-01640 SHIELD,INSULATOR CERAMIC
0020-20114 ISOLATOR DC BIOS CERAMIC
0020-20123 CERAMIC
0020-20126 STAND OFF CERAMIC DC BIOS CERAMIC
0020-29164 INSULATOR BOTTOM ON CAPSULE CERAMIC
0022-48198 BUSH, CERAMIC AC PIN CERAMIC
0022-50202 TOP PLATE, DUMMY PUCK, MPVD CERAMIC
0022-50218 BOTTOM PLATE, DUMMY PUCK, MPVD CERAMIC
0022-50410 SPACER, DUMMY PUCK, MPVD CERAMIC
0022-52740 counter groove Tungsten
0022-64115 liner alumina CERAMIC
0022-78003 CENTERFEED BAFFLE, PRESIDIO Al
0200-00247 RING CAPTURE,195MM SNNF CERAMIC,DPS CERAMIC
0200-00250 RING CERAMIC
0200-00296 SLEEVE JUNCTION SIN, DXZ CERAMIC
0200-00318 GUIDE LIFT PIN SST HEATER 300MM TXZ CERAMIC
0200-00353 SPACER PIN WxZ+HEATER CERAMIC
0200-00354 RING, PURGE WxZ +FC NOTCH CERAMIC
0200-00576 PIN, WEIGHT 300MM HDP-CVD CERAMIC
0200-00635 NOZZLE, ALL CERAMIC 2.28L, 300MM HDP CVD CERAMIC
0200-00710 ISOLATOR, CERAMIC, WXZ EC CERAMIC
0200-00911 LABYRINTH FEEDTHRU COIL SUPORT ELECTRA CERAMIC
0200-01006 Dome for plus & TE CERAMIC
0200-01009 top nozzle CERAMIC
0200-01196 LIFT PIN FAST LIFT, ALUMINA NON-CONDUCTIVE,100DIA CERAMIC
0200-01197 LIFT PIN, ADJUST FAST LIFT, ALUMINA NON-CONDUCTIVE,100DIA CERAMIC
0200-01368 INJICTOR CERAMIC CAS eMAX SAMSUNG CERAMIC
0200-01798 PIN LIFT,TXZ HEATER SINGLE TAPER,CERAMIC CERAMIC
0200-01844 INJECTOR,GAS 12 HOLES, .020 DIA, 1.02 CERAMIC
0200-01845 INJECTOR, GAS, 12 HOLES, .020 DIA, 1.02 CERAMIC
0200-01904 PIN PEDESTAL ALIGNMENT CERAMIC 300MM PCII CERAMIC
0200-02113 BUSHING,UP,SHIELD,INS,300MM SIP ENCORE TA(N) CERAMIC
0200-02116 INJECTION,GAS HOLES, .020 DIA , 1.02 LG 63RA, INNER CERAMIC
0200-02117 INJICTOR GAS SEAL,BLANK-OFF,CERAMIC eMAX CERAMIC
0200-02121 INSULATOR FEEDTHRU,300MM SIP ENCORE TA(N) CERAMIC
0200-02139 PIN ,COVER CAPTIVE SCREW,300MM SIP ENCORE TA(N) CERAMIC
0200-02145 CAP,COIL SUPPORT ,300MM SIP ENCORE TA(N) CERAMIC
0200-02781 PIN, LIFT, PRODUCERE CERAMIC
0200-04131 CAPTURE RING CERAMIC
0200-04132 FOCUS RING CERAMIC
0200-06404 LID CERAMIC DUAL GAS FEED 300MMDPS 232 CERAMIC
0200-09035 PIN, WAFER LIFT CERAMIC
0200-09046-2-CP01 ARM PAD CERAMIC
0200-09046-3-CP01 ARM PIN CERAMIC
0200-09046-CP01 ARM SUSCEPTOR CERAMIC
0200-09071 PIN WAFER LIFT 200MM CERAMIC
0200-09147 PIN WAFER LIFT 150 WB CERAMIC
0200-09240--2-CP01 ARM PAD CERAMIC
0200-09240-CP01 SUPPORT ATM SUSCEPTOR, 200MM CERAMIC
0200-09240-CP01 ARM PIN CERAMIC
0200-09384 PIN WAFER LIFT UNIVERSAL CHAMBER, 150 MM CERAMIC
0200-09414 COLLAR .271 SUS BWCVD CERAMIC
0200-09415 BUSHING .271 SUS BWCVD CERAMIC
0200-09452 ARM, T2WELDED SUSCEPTOR CERAMIC
0200-09575 PIN, WAFER LIFT, REV1 CERAMIC HOOP, 200MM CERAMIC
0200-09614 PIN, LIFT WAFER 200MM BWCVD CERAMIC
0200-09716 PIN LIFT, HEATER WxZ CERAMIC
0200-09735 COVER,CLAMPING RING, 150MM CERAMIC
0200-09757 RING CERAMIC
0200-09759 SHIELD,150MM,PEDESTAL,AL,FINGER CERAMIC
0200-09886 FINGER "6" MCVD CERAMIC
0200-09933 PIN, WAFER LIFT, HEATER CERAMIC
0200-09951 PAD WAFER LIFT RING WXZ CERAMIC
0200-09974 DXZ TEOS PUMPING RING CERAMIC
0200-10027 RING, INNER, 1.50", SGD CERAMIC
0200-10117 ARM CERAMIC
0200-10143 Insert, Ring Ceramic, DXZ Chamber CERAMIC
0200-10144 Teos isolator CERAMIC
0200-10157 LINER, JUNCTION CERAMIC
0200-10158 OBS SLEEVE, JUNCTION SIN, DXZ CERAMIC
0200-10160 LINER CERAMIC CERAMIC
0200-10163 ISOLATOR, Sin ENHANCED, PUMPING LID, DXZ CERAMIC
0200-10164 SIN PUMPING INSERT CERAMIC
0200-10169 EDGE RING CERAMIC
0200-10192 Ring focus ESC 8'' CERAMIC
0200-10204 PIN, WAFER LIFT, UNIV CH, METAL HOOP, 150 mm, P-CHUCK CERAMIC
0200-10284 LIFT PIN CERAMIC
0200-10286 LIFT RING CERAMIC
0200-10676 SUPPORT SUSCEPTOR 150MM TO/SO/N CERAMIC
0200-17666 WAFER NAILHEAD LIFT PIN, 300MM CATHODE DS CERAMIC
0200-17725 CATHODE LINER SCREW COVER SAMURAI CERAMIC
0200-18053 GUIDE LIFT PIN CERAMIC
0200-18081 COVER LOW PROFILE HDP-CVD, ULTIMA CERAMIC
0200-18086 NOZZLE ALL CERAMIC .85L HDP-CVD, ULTIMA CERAMIC
0200-18090 cathode insulator CERAMIC
0200-18093 NOZZLE ALL CERAMIC 2.55L, 1.5% HDP-CVD, ULTIMA CERAMIC
0200-18100 LIFT PIN CERAMIC 300MM, HDPCVD CERAMIC
0200-18109 COLLAR 200mm SNNF SML FLT ULTIMA HDPCVD CERAMIC
0200-18701 SHADOW RING INSERT, DIA 297 MM, 210 GRAM - DS CERAMIC
0200-19002 SHADOW RING HEAT SHIELD. 2 - PCE RING - DS CERAMIC
0200-19003 Shadow Ring Carrier, 300 mm DS CERAMIC
0200-19038 SHADOW RING INSERT, DIA 295 MM, 210 GRAM - DS CERAMIC
0200-20123 CERAMIC
0200-20215 HOUSING DOUBLE RF CONNECTORS,VECTRA-IMP CERAMIC
0200-20216 PIN COVER RF SCREW,VECTRA-IMP CERAMIC
0200-20315 REST BUTTON B101 VECTRA IMP CERAMIC
0200-20439 INSULATOR RIGID COIL SUPPORT, ELECTRA-IMP CERAMIC
0200-20440 REST BUTTON 300MM VECTRA IMP CERAMIC
0200-20441 SUCEPTOR CENTER, VENTED,PEDESTAL,B101 300MM CERAMIC
0200-20492 INSULATOR RECEPTACLE RIGID SUPPORT VECTRA-IMP,ICE CERAMIC
0200-21868 NOZZLE INSERT SG SOLID 300MM - DS CERAMIC
0200-22972 COVER RING (0.2mmEE) CERAMIC
0200-22973 Cover Ring (0.1mmEE) CERAMIC
0200-23049 Cover Ring (0.5MM EE), 150MM Wafer, 57.5MM Flat CERAMIC
0200-23094 FINGER LH 34MM HEIGHT CERAMIC
0200-23095 FINGER LH 26MM HEIGHT CERAMIC
0200-23096 FINGER RH 34MM HEIGHT CERAMIC
0200-23097 FINGER RH, 26MM HEIGHT CERAMIC
0200-23098 FINGER CENTER 34MM HEIGHT CERAMIC
0200-23099 FINGER CENTER 34MM HEIGHT CERAMIC
0200-23164 Shadow Ring Carrier, 200 mm DS CERAMIC
0200-23441 SHADOW RING INSERT, DIA 197 MM CERAMIC
0200-23655 RING, DEPOSITION, PVD W, CLEANCOAT ALUMINA 300 MM CERAMIC
0200-23665 SHADOW RING HEAT SHIELD. 2 - PCE RING - DS CERAMIC
0200-23666 FINGER SLIDING AL203 CERAMIC
0200-23849 SHADOW RING, 2.50 MM EDGE, NOTCH TSV, 300 MM CERAMIC
0200-23850 SHADOW RING, 3.00 MM EDGE, NOTCH TSV, 300 MM CERAMIC
0200-24716 300MM ESC LIFTING SCREW CAP CERAMIC
0200-24903 ESC INSULATOR, 300MM CATHODE DS CERAMIC
0200-24917 LIFT PIN GUIDE, ESC SAMURAI CERAMIC
0200-25446 BUSH, CERAMIC DC PIN CERAMIC
0200-25488 BUSH, CERAMIC DC PIN CERAMIC
0200-25506 CERAMIC ROD CENTERING CERAMIC
0200-25716 CERAMIC ROD CENTERING CERAMIC
0200-26107 ESC EDGE INSULATOR, CATHODE DS CERAMIC
0200-26129 ESC INSULATOR, 300MM CATHODE DS CERAMIC
0200-26199 CERAMIC ROD CENTERING CERAMIC
0200-26557 BOTTOM RING CERAMIC
0200-26558 TOP RING CERAMIC
0200-26738 ISOLATOR, CERAMIC, LOWK, 300MM PRODUCER CERAMIC
0200-27075 centering rod CERAMIC
0200-27124 SHADOW RING INSERT, DIA 196 MM CERAMIC
0200-27135 REWORK, ADAPTER CERAMIC
0200-27235 SHADOW RING HEAT SHIELD DIA 196MM - DS CERAMIC
0200-27286 CERAMIC
0200-27287 CERAMIC
0200-27306 CERAMIC
0200-27489 SHADOW RING INSERT, DIA 297 MM - DS CERAMIC
0200-27490 Shadow Ring Carrier, 200 mm DS CERAMIC
0200-27494 ALN DISC, 300MM NOTCHED CERAMIC
0200-27495 ALN DISC, 500MM CERAMIC
0200-27497 ALN DISC, 501MM CERAMIC
0200-27588 ALN CENTERFEED BAFFLE, PRESIDIO CERAMIC
0200-27591 ALN 500MM DISC, 3MM THICK CERAMIC
0200-27642 CENTERFEED BAFFLE, PRESIDIO CERAMIC
0200-28296 CERAMIC PAD, BIG, INDEXER CERAMIC
0200-28297 CERAMIC PAD, SMALL, INDEXER CERAMIC
0200-29164 INSULATOR BOTTOM ON CAPSULE CERAMIC
0200-35290 HOUSING, GAS FEED NOZZLE DPS MEC CHAMBER CERAMIC
0200-35291 PLUG, INNER, GAS FEED ASSY, DPS A1 CERAMIC
0200-35295 HOUSING, GAS FEED DPS POLY CERAMIC
0200-35296 PLUG,INNER,GAS FEED ASSY,DPS PC CERAMIC
0200-35323 RING,CAPTURE 195MM SEMI NOTCH NO FLAT CERAMIC DPS CHAMBR CERAMIC
0200-35702 CXZ EDGE RING CERAMIC
0200-36373 LIFT PIN .149 DIA TRIANGULAR CERAMIC
0200-36415 C-SHAPE RING CERAMIC
0200-36416 BOTTOM RING CERAMIC
0200-36418 COVER PUMPING RING CERAMIC
0200-36428 TUBE CERAMIC GAS FEED,MICROWAVE CLEAN CERAMIC
0200-36630 PLATE, COVER, 8'' HEATER, DxZ ALUMINUM NITRIDE CERAMIC
0200-36631 PLATE, COVER, 8'' HEATER, DxZ ALUMINUM NITRIDE CERAMIC
0200-36649 LIFT RING CERAMIC
0200-36666 isolator ceramic CERAMIC
0200-36699 LIFT PIN FAST LIFT, ALUMINA NON-CONDUCTIVE CERAMIC
0200-36700 LIFT PIN, ADJUST FAST LIFT, ALUMINA NON-CONDUCTIVE CERAMIC
0200-39140 RING,FOCUS, 195MM SNNF 1", 60DEG, DPS CERAMIC
0200-39324 CHM INSERT CERAMIC
0200-39361 PRODUCER PUMPING RING CERAMIC
0200-40156 LIFT PIN, CERAMIC, LONG CERAMIC
0200-71871 ROLLER LIFT PIN 15K/25K CERAMIC
0200-71872 PIN, ROLLER BUSHING 15K/25K CERAMIC
0200-71873 PIN END GROOVED ROLLER BUSHING 15K/25K CERAMIC
0200-71880 BUSHING ROLLER, LIFT PIN15K/25K CERAMIC
0200-71894 ROLLER LIFT PIN 15KP & 40K CERAMIC
0200-72122 CERAMIC
0200-76048 CERAMIC WASHER FINGER INSULATOR 101 HOOP CERAMIC
0270-11512 DUMMY, PUCK PLATE, MPVD CERAMIC
Second Source AMAT Ceramic Components from SEMIXICON
Wednesday, May 5, 2021
Tuesday, May 4, 2021
DFG850 LJLR510074-00 MOENR153 Wafer Grinding Chuck Table
DFG850 LJLR510074-00 MOENR153 Wafer Grinding Chuck Table :refurbishing ,new make ,modification ,and new design, all in www.semixicon.com
